MDF and IDF: A Practical Guide to Commercial Network Room Planning

Updated October 1, 2026

MDF and IDF locations organize the network infrastructure serving your building. Planning them involves more than finding a place for a rack: cable routes, backbone connections, equipment capacity, power, and maintenance access all affect the installation.

For Northeast Ohio offices, warehouses, and multi-floor facilities, this guide explains how to define equipment-room requirements before an expansion, relocation, or structured cabling project.

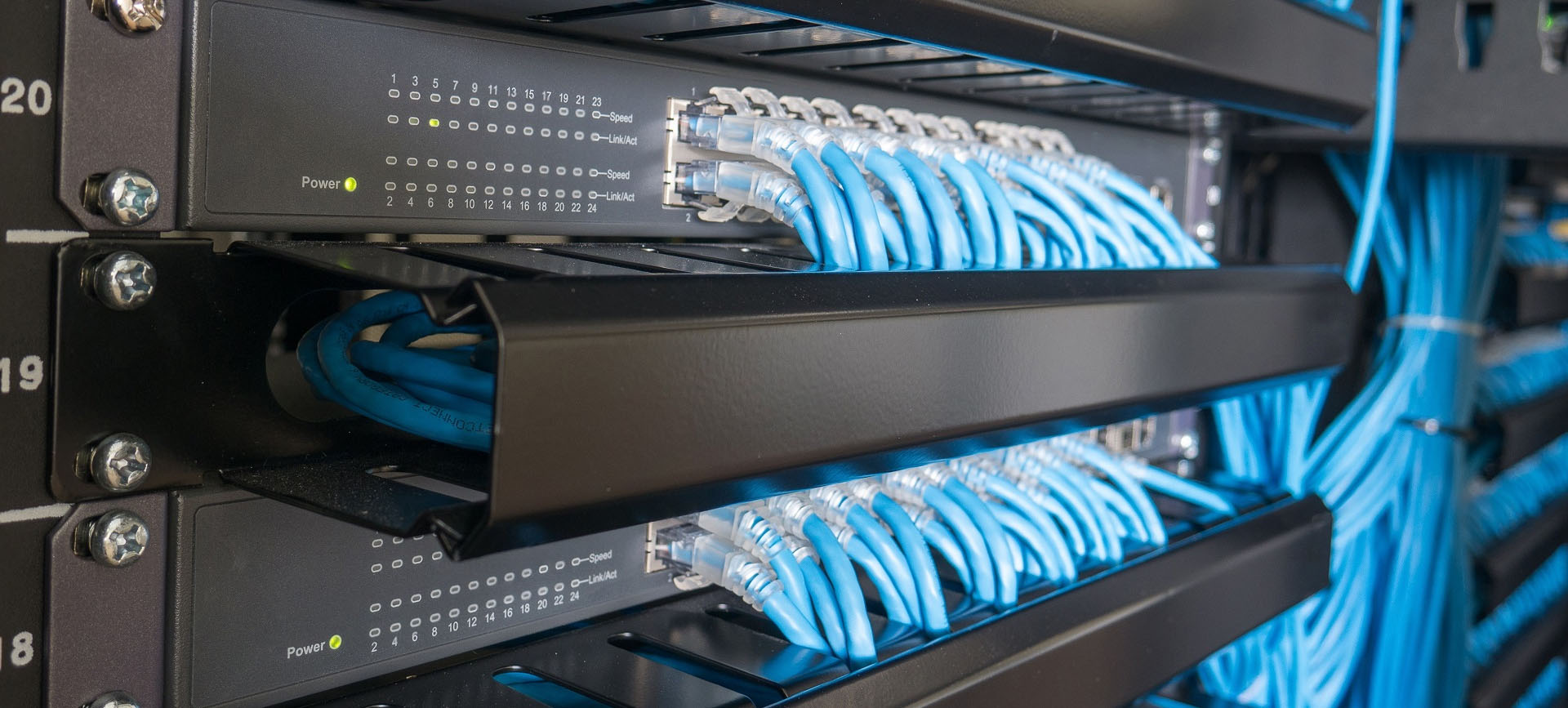

What Are MDF and IDF Locations?

MDF means Main Distribution Frame; IDF means Intermediate Distribution Frame. In everyday project discussions, these terms often describe the main network room and secondary distribution rooms or cabinets.

The main location commonly houses core network equipment and connections to other distribution locations. An IDF serves devices in a particular area or floor, connecting back to the main network through a backbone.

The service-provider handoff may be in the main room or a separate entrance location. Confirm its actual position and who provides the connection to your equipment. Room names alone do not establish the physical layout.

Decide Whether Additional IDF Locations Are Needed

A larger building does not automatically need an IDF on every floor. Evaluate actual cable routes, device locations, equipment requirements, and operational needs.

• Distance from the proposed rack to each device along the cable route.
• Device concentration in offices, production areas, and warehouses.
• Available pathways between floors or building sections.
• Switch-port and PoE requirements in each area.
• Access for installation and future maintenance.
• Planned expansion and whether existing rooms can support it.

For conventional twisted-pair layouts, allow for the fixed link and patch cords within the applicable length limits. Do not measure only a straight line across the floor plan. Our data and voice cabling planning guide explains link scope and testing considerations.

Select Equipment Spaces for Access and Serviceability

Choose locations that support secure, organized maintenance. A convenient empty closet may lack power, cooling, pathways, or suitable mounting conditions.

• Rack or cabinet: Verify equipment depth, mounting needs, usable rack space, and cable access.
• Working access: Provide room to reach connections and service equipment.
• Environment: Review temperature, ventilation, dust, moisture, and nearby processes against equipment requirements.
• Security: Define authorized access and key or credential ownership.
• Pathways: Identify cable entry, supports, penetrations, and required restoration.
• Expansion: Reserve practical capacity for future panels, equipment, and cables.

Confirm building requirements and trade responsibilities before finalizing the location. Do not assume a wall-mounted cabinet can support the proposed equipment without verifying its load and mounting arrangement.

Define the Fiber Backbone Between Locations

Fiber is commonly used for backbone connections between distribution locations. Specify the application and equipment before choosing fiber type and strand count.

Establish:

• Required link speed and compatible switch optics.
• Measured or estimated route length.
• Single-mode or multimode fiber suited to the application.
• Active and spare strands, connectors, and enclosure capacity.
• Cable construction suited to the route and environment.
• Termination, labeling, loss testing, and any additional test requirements.
• Any alternate routes or redundancy requirements.

Two fibers in the same cable do not create physically diverse routes. If continuity requires an alternate path, define it explicitly and review common points of failure.

See our commercial fiber optic cable selection guide and fiber optic installation services for related planning.

Coordinate Power, PoE, and Backup Requirements

Identify the equipment load and coordinate suitable power with the responsible electrical contractor or facility contact. Bonding, grounding, and electrical work must have clearly assigned responsibilities.

For powered network devices, confirm compatible PoE at each switch port and the total switch power budget. Cameras, phones, and access points may share that capacity.

If backup power is required, define which equipment it protects and the desired runtime. Keeping an IDF switch powered does not keep the whole network operating if upstream switches, gateways, or service equipment lose power.

Our commercial WiFi equipment guide covers switch and PoE planning for wireless access points.

Plan Existing-Service Moves Separately

Moving a live rack or network room requires coordination beyond furnishing new cabling. Identify active connections, equipment owners, service-provider dependencies, and acceptable interruption windows.

• Document existing patching and device connections.
• Confirm new cabling and backbone readiness before cutover.
• Assign equipment configuration and reconnection responsibilities.
• Plan testing, escalation contacts, and recovery options.
• Communicate expected interruptions and staff availability.

Do not promise an interruption-free move without a verified design and transition plan. Keep relocation labor, new installation work, and IT configuration clear in the proposal.

Require Labels, Test Records, and Closeout Documentation

A useful installation is one the next technician can understand. Agree on naming and deliverables before work begins.

• Room, rack, cabinet, patch-panel, and outlet identification.
• Backbone endpoints, fiber strands, and enclosure labels.
• Copper and fiber test records matched to installed links.
• Updated cable schedules and location drawings.
• Relevant rack photos and records of known exceptions.
• Configuration handoff where active-equipment work is included.

What to Include in Your Budget Request

Provide the project address, floor plan, existing MDF/IDF locations, rack photos, approximate device counts, proposed changes, desired timing, and IT contact. Identify known cable routes, power limitations, and after-hours requirements.

Mark uncertain conditions as unknown. Request clear assumptions for racks, cabling, fiber, switches, power coordination, testing, relocation, and documentation so competing proposals can be compared fairly.

Plan MDF and IDF Infrastructure With NST

North Shore Technologies helps Northeast Ohio organizations plan structured cabling infrastructure, distribution locations, fiber backbones, rack organization, labeling, and defined testing work.

We start with requirements and a preliminary budget where practical. A site survey or technical review helps establish a firm proposal when pathways, equipment spaces, or existing conditions need verification.

For broader project planning, read our structured cabling guide for Northeast Ohio businesses.
