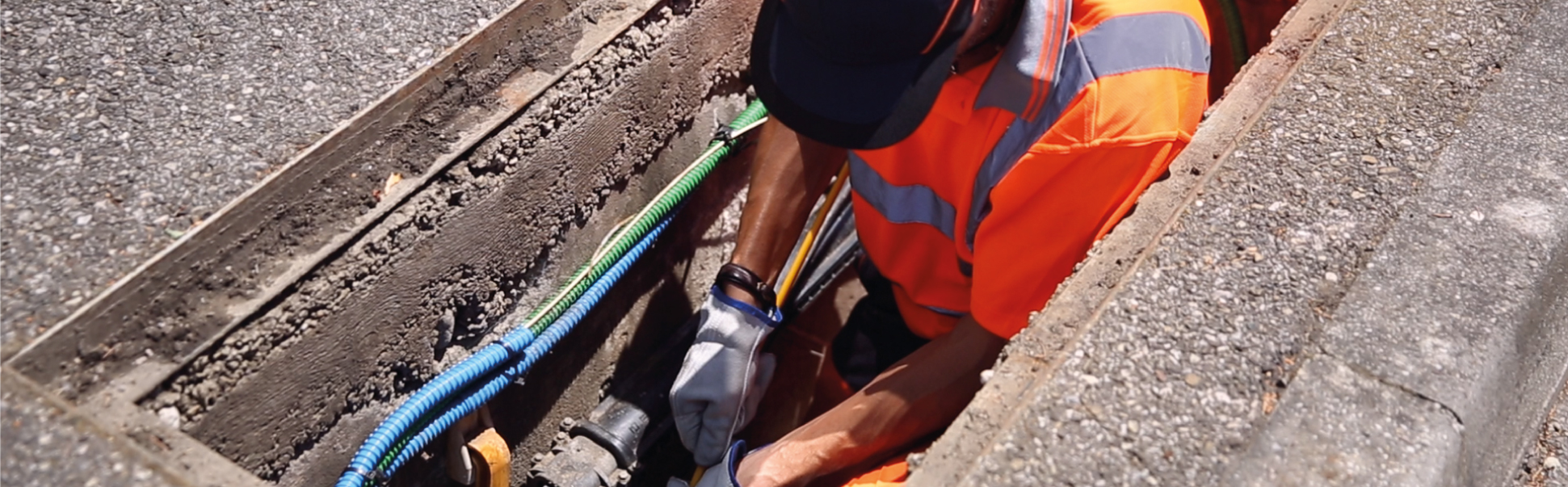

Underground fiber optic installation connects commercial buildings, network rooms, and campus facilities through a planned outside route. The cable is only part of the project. Pathway condition, utility coordination, building entrances, excavation access, restoration, and testing all affect the final scope.
This guide helps Northeast Ohio business owners, facility managers, IT teams, and construction teams prepare for a building-to-building fiber project. Define the complete connection before comparing equipment lists or a price per foot.
Define the Connection and Business Requirements
Start with the two endpoints and the services the link must support. A warehouse expansion, separate office building, and campus network may have different capacity and availability needs.
- Identify the network room and termination location in each building.
- Provide current switch models and planned link speeds.
- List required connections, spare capacity, and future buildings.
- Describe acceptable outages and the proposed installation schedule.
- Share existing drawings, conduit records, and fiber test reports.
Measure the proposed pathway rather than the straight-line distance between buildings. Include interior routing, enclosure entry, and service slack. For fiber types and equipment compatibility, use our commercial fiber-backbone planning guide.
Survey the Underground Fiber Optic Installation Route
A site review should establish where the pathway can run and how crews can access it. Note pavement, landscaping, drainage, changes in elevation, loading areas, and planned construction. Also identify property boundaries and locations requiring owner or authority permission.
Existing drawings are useful starting points. However, they do not prove that a conduit is continuous, accessible, or available for a new cable. Record uncertain conditions as proposal assumptions until they are verified.
Ask who will arrange utility notification, review responses, identify private facilities, obtain permissions, and coordinate the civil work. OHIO811 provides current excavation guidance. Private lines on the property may require separate locating arrangements; do not assume every underground facility is included in utility markings.
Compare Existing Conduit, Trenching, and Boring
| Pathway option | Planning considerations |
|---|---|
| Existing conduit | Verify endpoints, usable capacity, continuity, obstructions, access points, and suitability for cable placement. |
| New trench and conduit | Define excavation, separation and depth requirements, crossings, backfill, surface restoration, and site access. |
| Directional boring | Evaluate crossings, utilities, soil conditions, entry and exit areas, permissions, and the responsible boring contractor. |
| Direct burial | Confirm the selected cable permits this method and assess protection, repair access, site conditions, and future work. |
The appropriate method depends on the site. Boring can reduce some surface disruption, but it still requires access, utility coordination, and an installation plan. Neither trenching nor boring should be assumed to include all restoration work.
The proposal should identify who performs excavation or boring and who installs and tests the fiber. If a separate civil contractor is involved, establish the handoff requirements before mobilization.
Verify Conduit and Access Points Before Cable Placement
Conduit verification may require cleaning, rodding, or other suitability checks. Review bends, route length, occupied sections, and pulling access. A pull string alone does not establish that the pathway is ready.
Access enclosures should suit their location, expected loading, and maintenance needs. Plan usable space for cable routing and slack. Coordinate enclosure placement so later access does not unnecessarily disrupt operations.
Document how the installer will protect existing cables and address a blocked or damaged conduit. An allowance or defined change process is more useful than assuming unknown conditions will have no cost impact.
Select Cable Construction and Building Entrances
Fiber type and cable construction are separate choices. Confirm environmental suitability, water exposure, direct-burial approval where applicable, and the requirements at each building entrance. An outdoor cable designation alone does not establish suitability for every interior route.
Review entrance sealing, interior transitions, firestopping, enclosures, and any bonding requirements associated with conductive components. Assign these tasks in the scope rather than leaving gaps between trades.
Follow the selected manufacturer's cable handling instructions. Pulling tension and bend limits apply during installation as well as after placement. The pull plan should account for route bends, equipment access, and approved installation accessories.
Plan Terminations, Spare Capacity, and Redundancy
Specify strand count, connector interfaces, termination method, patch panels, splice storage, and patch cords. Confirm compatibility with the intended switch optics. Our MDF and IDF planning guide covers endpoint room considerations.
Spare fibers provide capacity for later connections. They do not create a separate backup route when they share the same cable and pathway. If an outage would significantly affect operations, discuss route diversity and the network failover design with your IT team.
Agree on Testing and Closeout Deliverables
Define acceptance before installation. Insertion-loss testing measures end-to-end optical loss. OTDR testing helps characterize events along the route. These methods serve different purposes; an OTDR trace should not replace required insertion-loss measurements.
Specify the strands, wavelengths, reference method, and acceptance limits in the project requirements. Also identify whether switch configuration, optics installation, and active-link commissioning belong to NST or the IT provider.
- Endpoint labels and strand assignments.
- Route records and enclosure locations for the owner's controlled documentation.
- Splice and termination records.
- Agreed test reports and acceptance results.
- Equipment handoff and support responsibilities.
What Affects Underground Fiber Installation Cost?
Route length matters, but it rarely tells the whole story. Compare proposals using the same assumptions for pathway construction, cable placement, termination, testing, and restoration.
- Existing conduit condition and verification work.
- Excavation or boring method and crossing requirements.
- Soil conditions, access restrictions, and surface restoration.
- Cable construction, strand count, and termination quantities.
- Access enclosures, building entrances, and interior routing.
- Permits, private locating, traffic coordination, and trade responsibilities.
- Installation timing, outages, testing, and documentation.
For example, a fiber-only quote using owner-provided conduit is not comparable to a proposal that includes a new pathway and pavement restoration. Ask for exclusions, allowances, and recurring support charges to be identified clearly.
Frequently Asked Questions
Can we reuse the conduit between our buildings?
Possibly. Verify its route, condition, capacity, access, and suitability before including reuse in a firm proposal.
How deep should the fiber pathway be?
Determine depth and separation through the applicable project requirements, site conditions, and approving authorities. A general blog recommendation cannot establish the correct depth for every route.
Does boring eliminate restoration costs?
No. Entry and exit areas, access, and other disturbed locations may still require restoration. Define those responsibilities in the civil scope.
Can we receive a budget before a site survey?
An initial budget can use endpoint information, an approximate route, photos, and stated assumptions. A firm proposal may require pathway verification and a coordinated site review.
Plan Your Commercial Fiber Project With NST
North Shore Technologies is a veteran-owned low-voltage systems integrator established in 2001, serving Northeast Ohio. We help commercial project teams define fiber connections, installation responsibilities, and testing requirements.
Send the site address, endpoint locations, approximate route, available drawings, network requirements, and project schedule. We can review the initial scope and identify the information needed for a preliminary budget and firm proposal.
